Full Height Elevator Infrared Door Detector For Residence Elevator Light Curtain
WECO-917H elevator door sensor is one of our standard door sensors. Now we also have WECO- 957H series door sensors with sunlightproof function. About WECO-917/ 957H door sensor, there only have two mounting holes on top and bottom makes the sensor more elegant.
Currently Suzhou Dongnan elevator CO., also exported to Australia and other Europe countries on their home lift.
Application
Residence elevator
Advantages
* Two mounting holes only, easy installation,no much mounitng holes.
* Work together with our parted 3D light curtain to achieve more safety protection level.
* 194 Beams makes narrow infrared diodes range and more safety.
* Customerzied connection cable or terminal connectors.
* Strong techinical teams to offer techincal support.
Technical Features
| Technical Features | 917H8 |
| Number of Infra Red Diodes | 40 Diodes |
| Response Time | Relay Output | 65ms |
| Transistor Output | 41ms |
| Scanning Beams | 194~118 Beams |
| Infrared Diodes Range | 47.5mm |
| The Mimimum Door Opening | ≤20mm |
| The Maximum Door Opening | ≥1800mm |
| Redundancy (one transimitter shielded after 120s detected absent) | YES |
| Detecting Range | 0-4000mm |
| Operation Temperature | -20℃~+65℃ |
| Light Immunity | 100000 Lux |
| Protection Level | IP54 |
| EMC ( EN12015 EN12016) | General circuit level |
| LED Interpretation | 1. Yellow LED and Red LED in Receiver on when blocked or in malfunction. 2. Yellow LED in receiver on and Red LED in receiver off without block. |

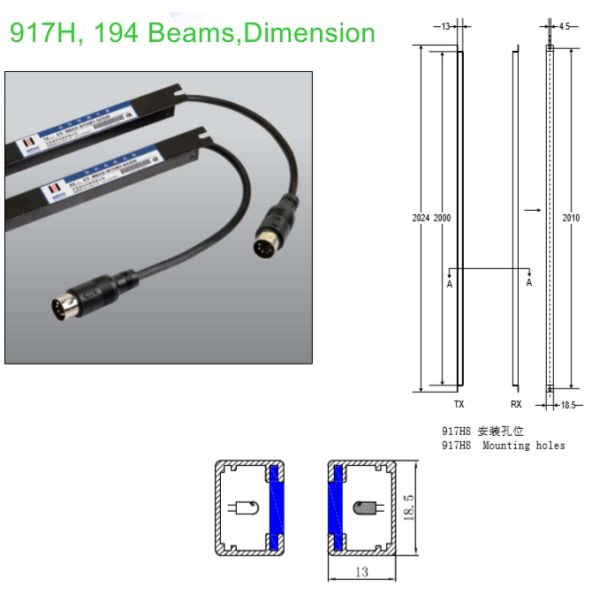

Mounting Hole
Model Definitions
About US
Ningbo WECO Optoelectronics CO., LTD. is located in Beilun, Ningbo, Zhejiang, which is only 40km far away from Beiliun Port. Our company is specilizing in elevator door sensor production and designing for more than 20 years with WECO brand. Currently we also doing OEM for our customers.
WECO has 1.2million sets production capacity annually. We are the biggest elevator door detector manufacuter in the world.
Till now, our door sensor has been sold to more than 40 coutries and areas, like Europe, North America, Australia, Brazil, India. And we sold 1million sets in 2018.
